28,000-sq.ft. High Bay
• Build space for 100 ft length assembly
• Environmental controlled material storage

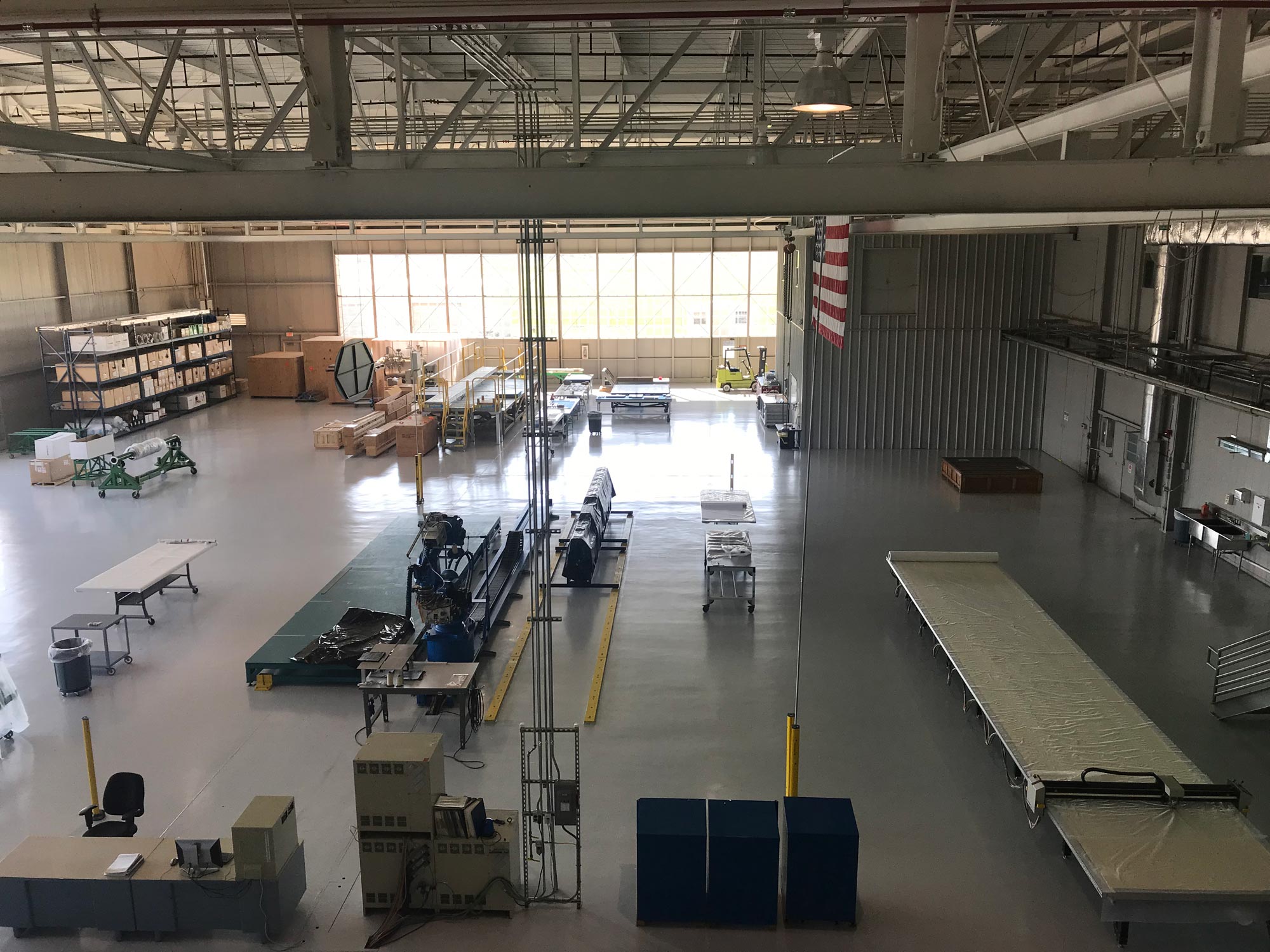

Image Alternative Text: picture of 28,000 BAY
Mold Tool Prep Lab
- 1,620 sqft room
- Temperature and humidity controlled

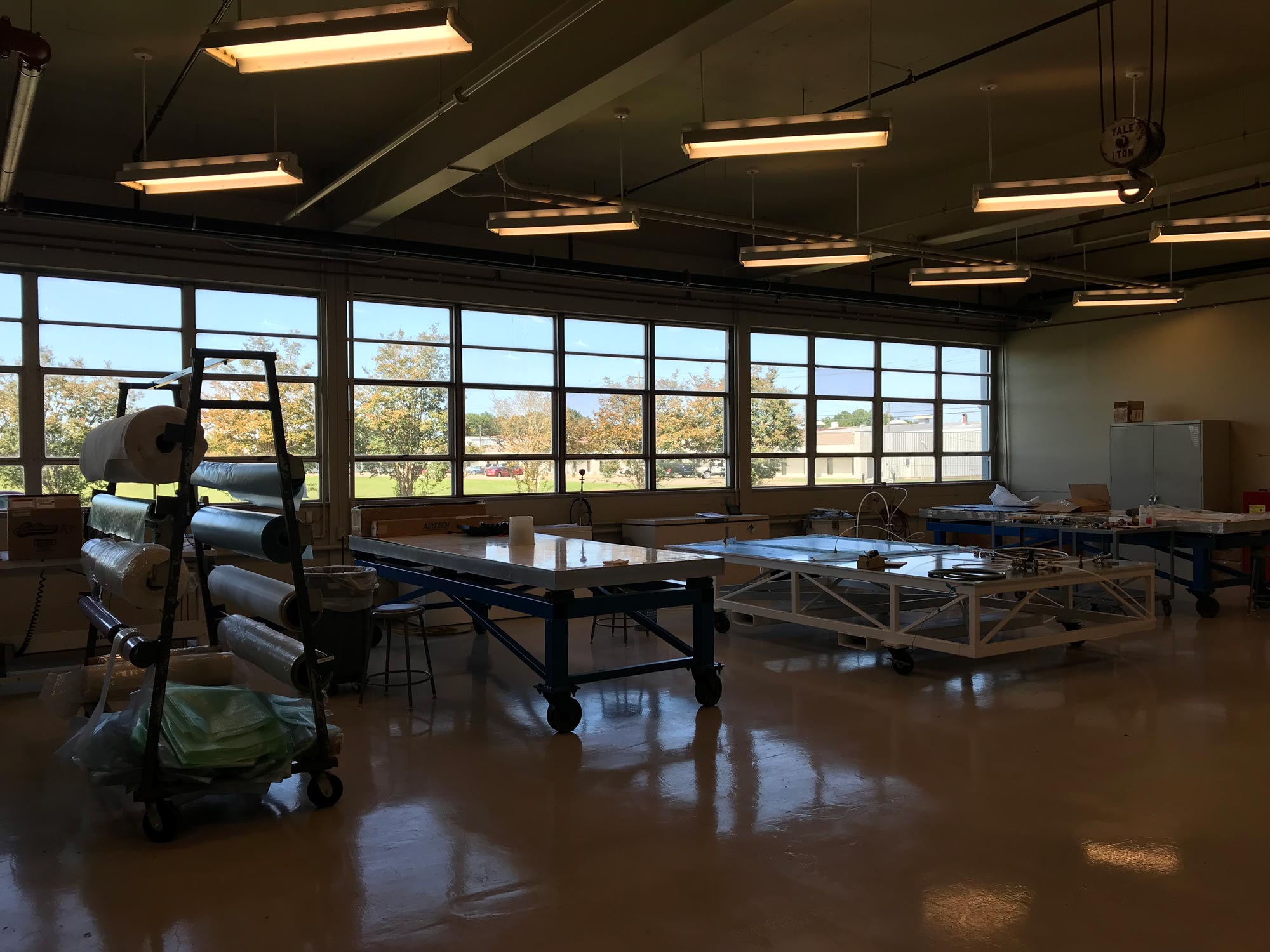

Image Alternative Text: 2,000-sq.ft. Clean Room
Robotic Stitching – (8-ft. reach by 40-ft. X axis travel)
- Motoman UP130 Robot, 8-ft. max. reach by 40-ft. X-axis travel
- KSL RS566 end effector for 2-sided stitching
- KSA RS535 end effector for single-sided stitching
- Altin RN900 end effector for tufting

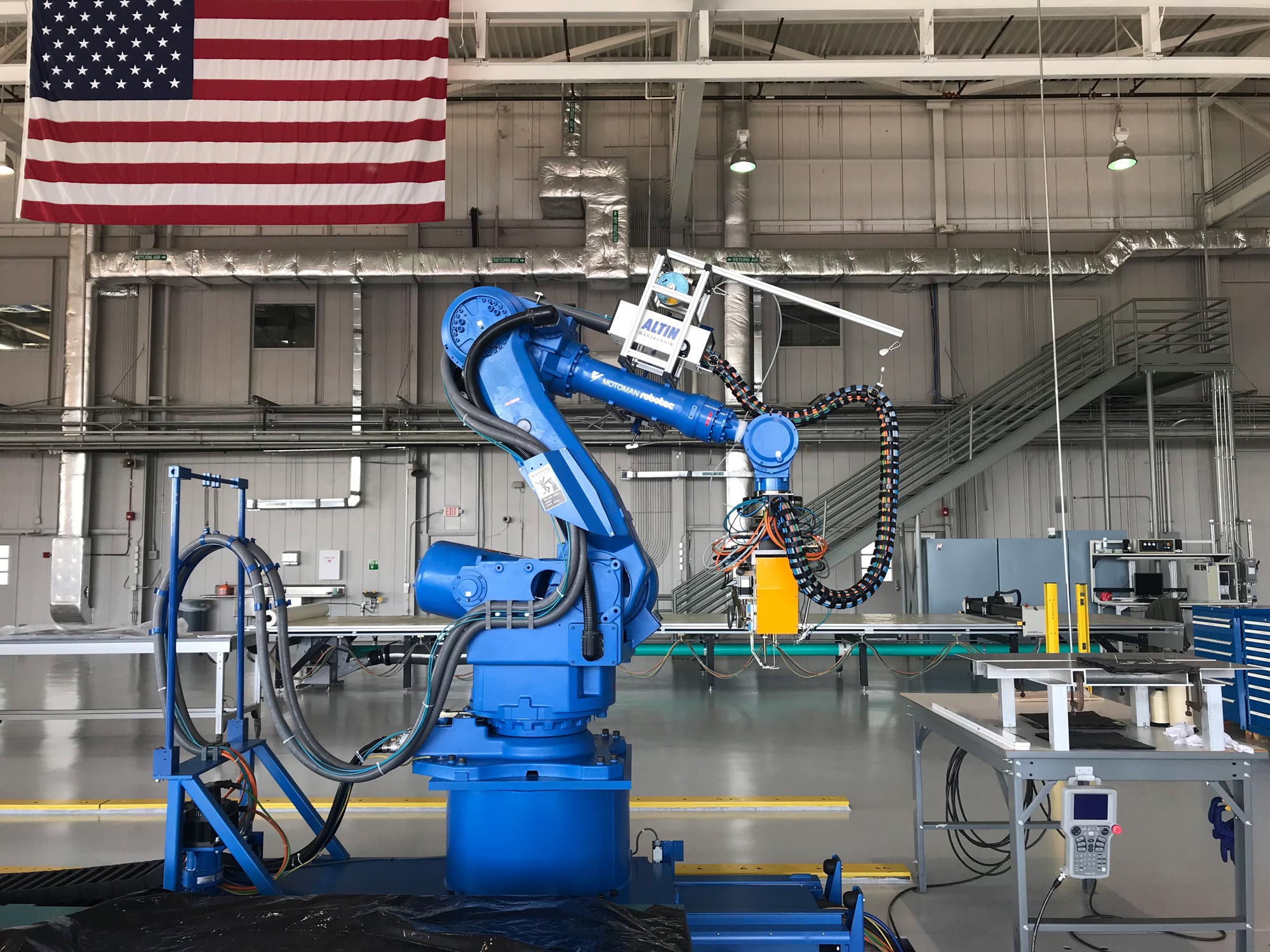

Image Alternative Text: Robotic Stitching – (8-ft. reach by 40-ft. X axis travel)

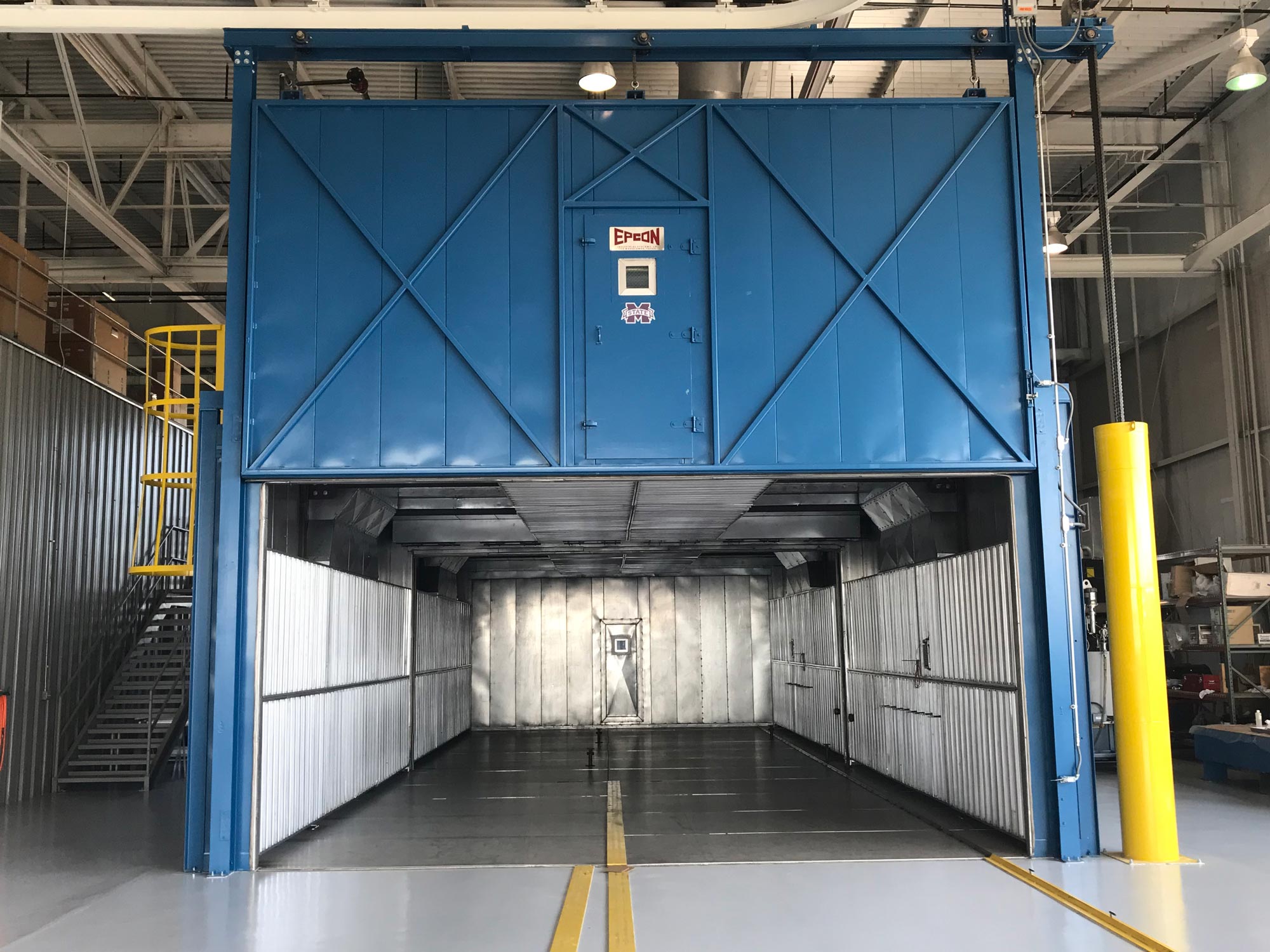

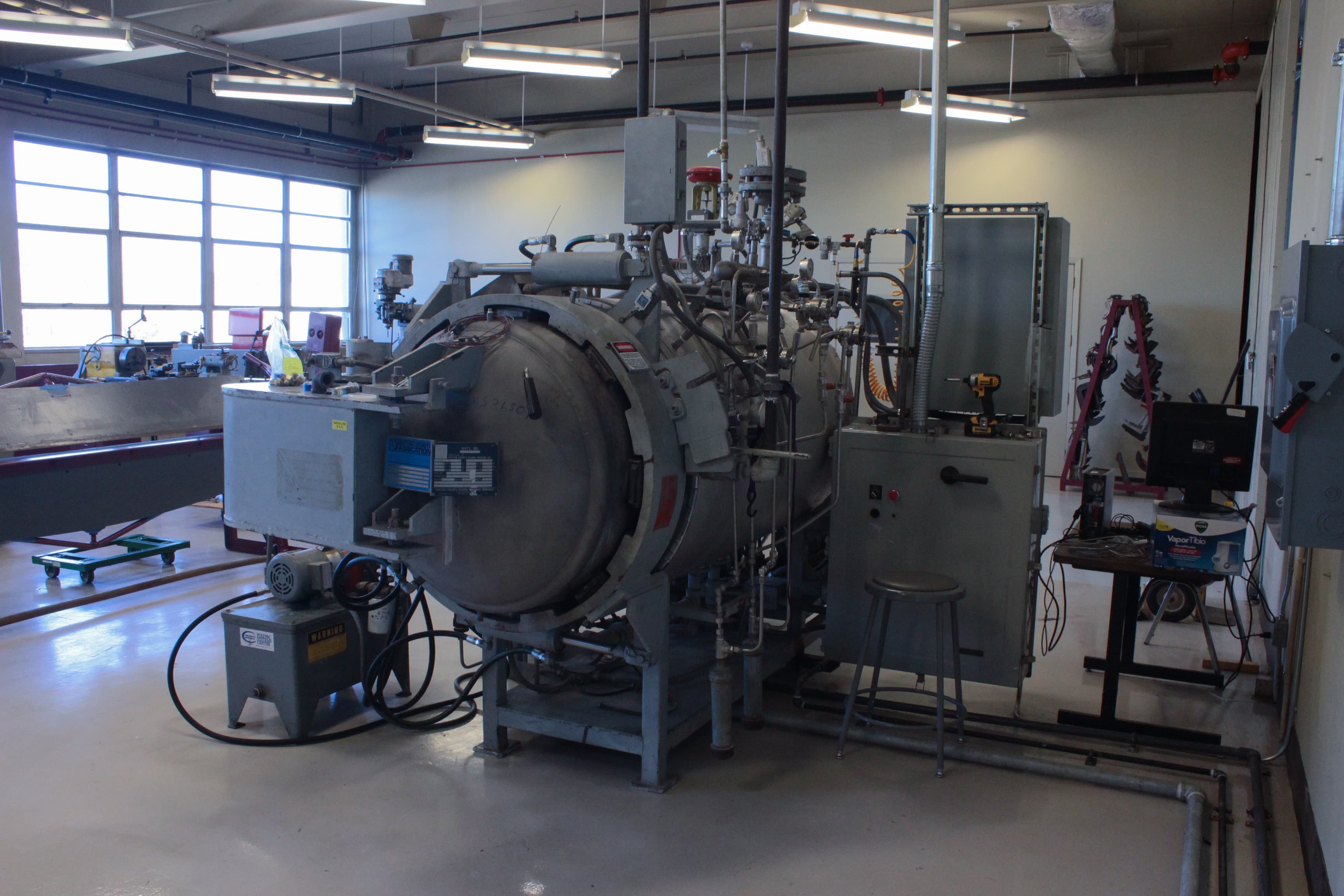

Programmable Oven Curing 20-ft. x 50-ft. x 10-ft.
• Dual chamber gas fired oven - 50-ft. chamber or two independent 25-ft. chambers
• 450⁰F maximum temperature
• 2 inlet ports for resin infusion (one per chamber)
• 16 vacuum ports (8 per chamber)
• Data logging capable
Image Alternative Text: Programmable Oven Curing 20-ft. x 50-ft. x 10-ft.
CNC Ply Cutting
- Gerber DCS 2500
- 68-in. x 33-ft usable working surface area

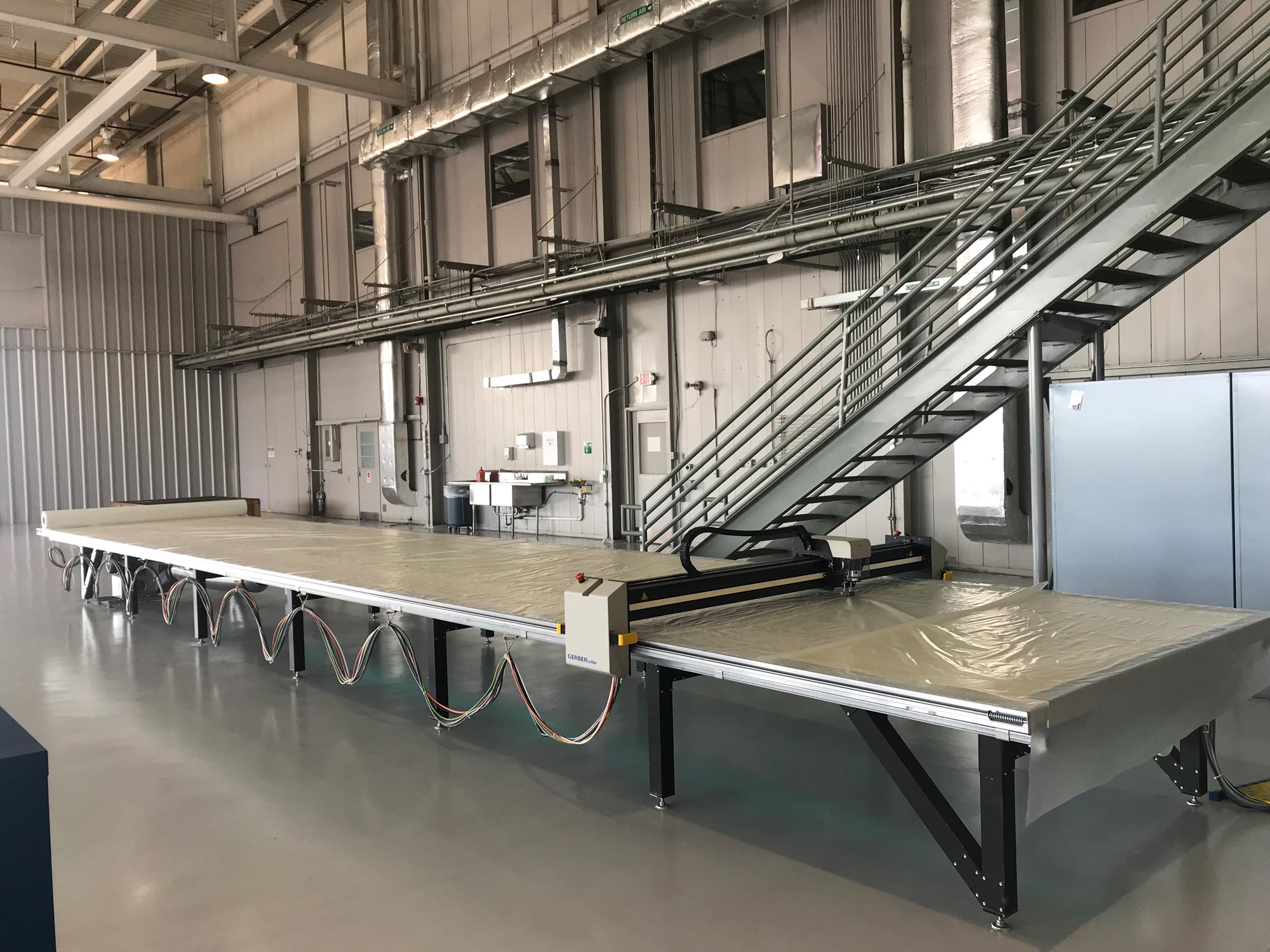

Image Alternative Text: CNC ply cutting
Hydraulic Presses
- Grimco 1’x1’
- Temperature: 800F
- Pressure: 12Ton

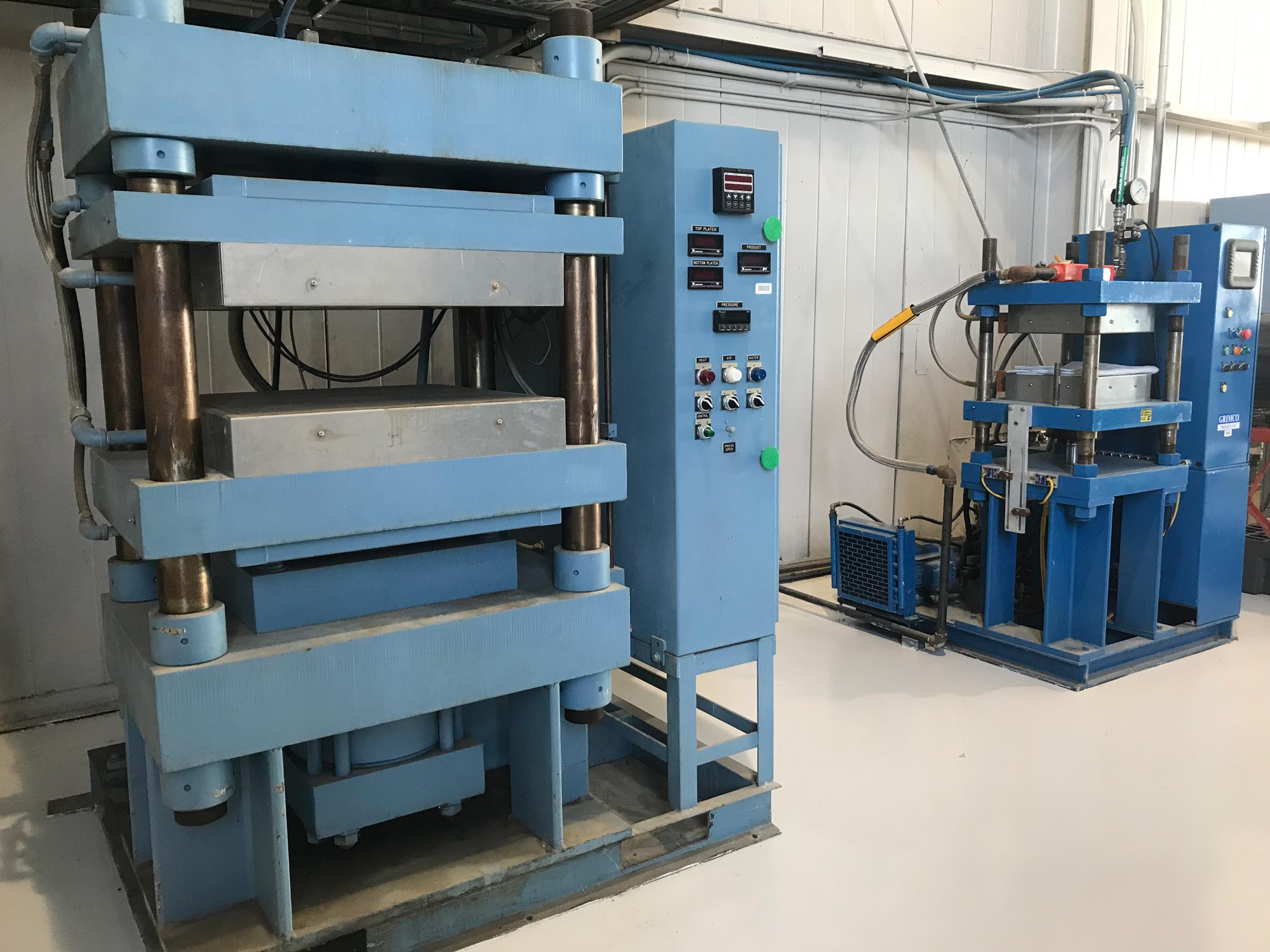

Image Alternative Text: picture of hydraulic pressses

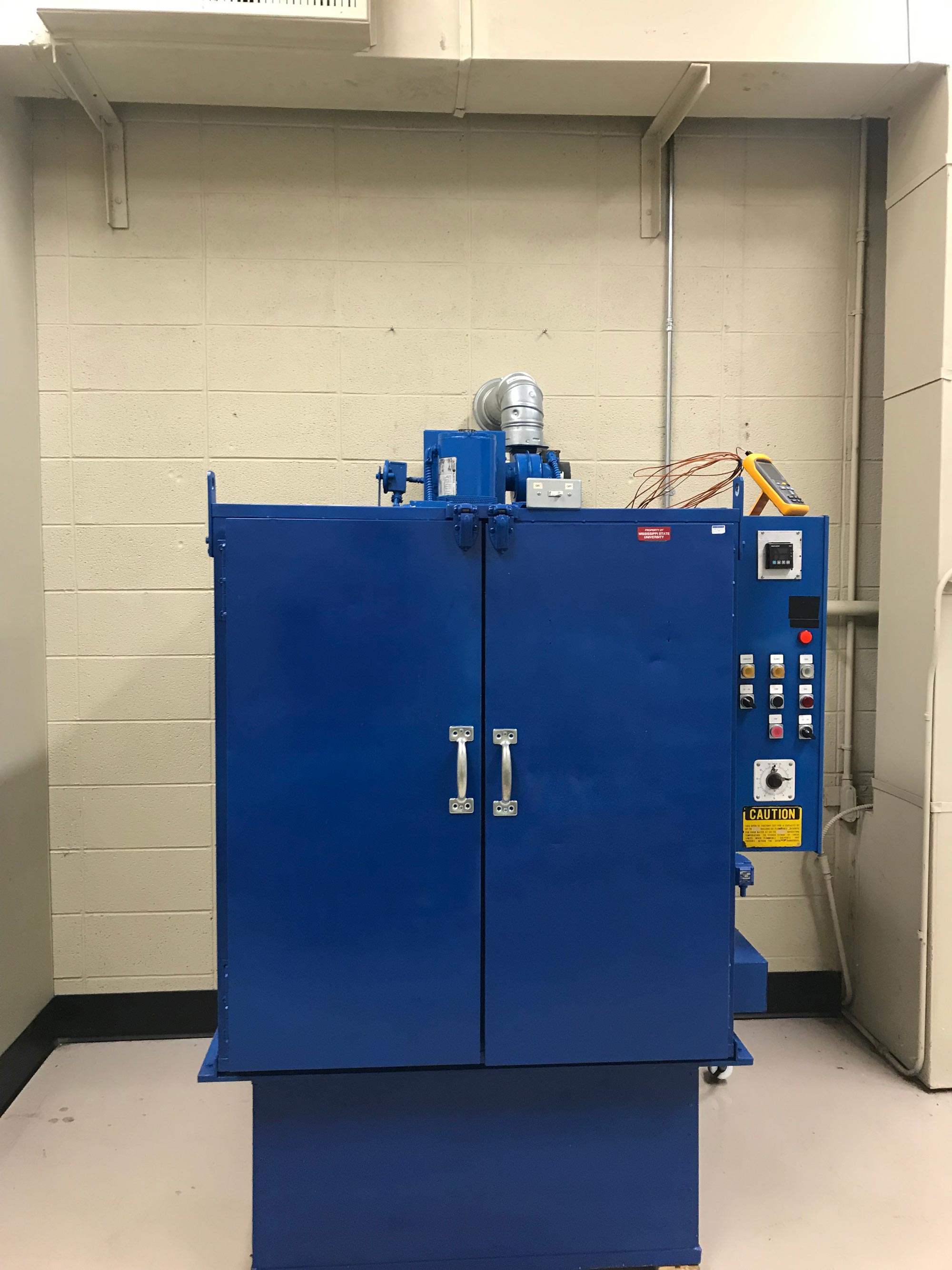

Oven 3-ft x 3-ft x 3-ft in Clean Room
- 350 ̊ F maximum temperature
- One Inlet port for heated resin infusion
- One Vacuum port
Image Alternative Text: Oven 3-ft x 3-ft x 3-ft in Clean Room
Instron Dynatec 9250 HV Impact Tower Specs
- Gravity / Spring-drop weight tower
- 1.25m free fall height
- Capable of simulated drop height of 20.4 m
- Shock force of 15.5 kN to 89 kN
- Max. impact energy of 1603 J
- 5 MHz high-speed data capture
Image Alternative Text: Picture of Instron Dynatec 9250 HV Impact Tower Specs
Universal Testing Machine
Image Alternative Text: picture of universal testing machine
Hydraulic Presses
- Grimco 1’x1’
- Temperature: 800F
- Pressure: 12Ton
Image Alternative Text: picture of hydraulic pressses
Production-scale Automated Resin Infusion Processing
- 100 gallon ADP SDR VARTM Epoxy Processor
- Plumbed to 50ft oven
- Variable ratio / variable flow system
Image Alternative Text: Picture of production-scale Automated Resin Infusion Processing

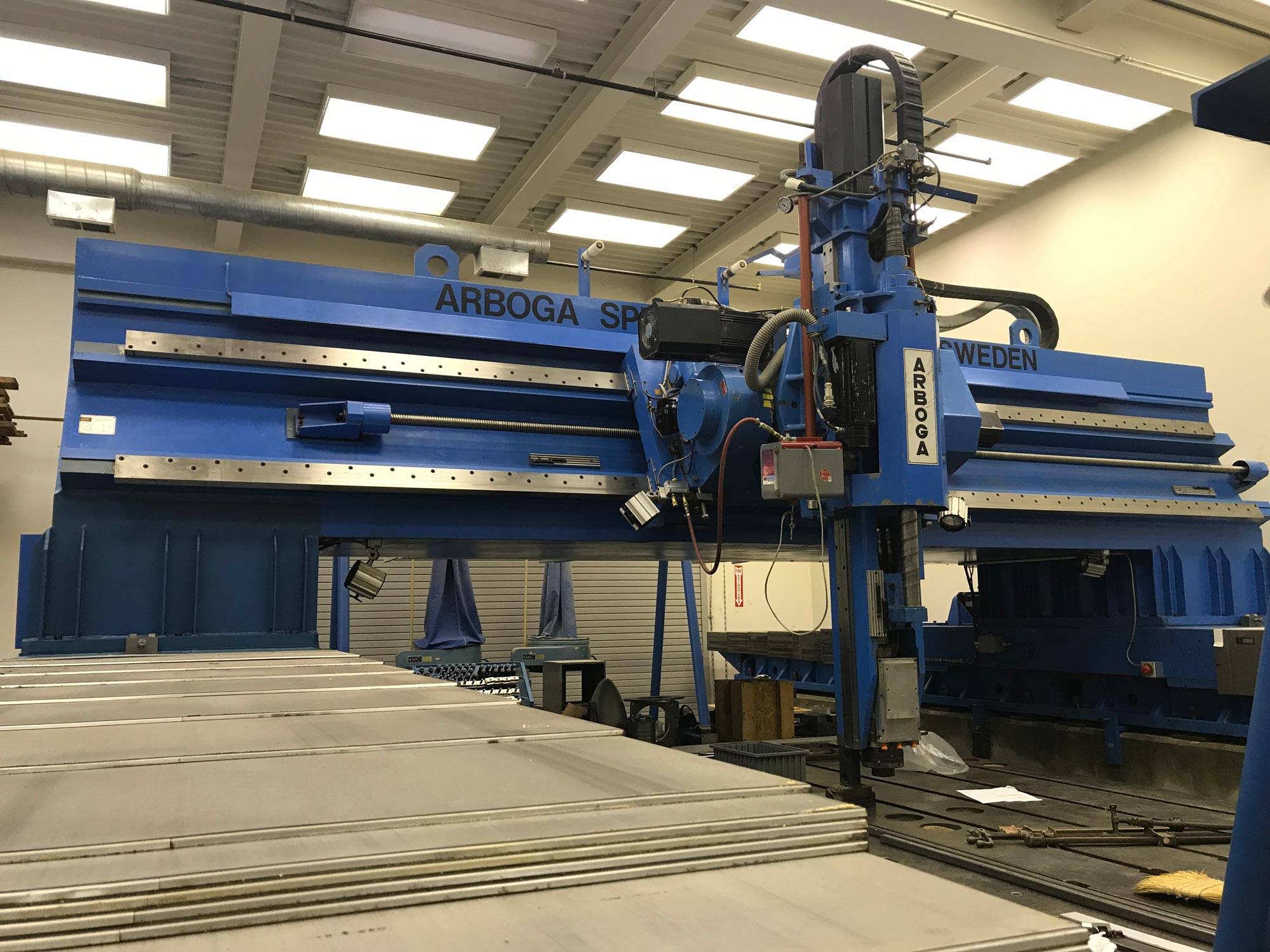

5 Axis CNC Router
- CR Onsrud QUBE Model F144Q17
- 144 X, 60 Y, 40 Z [inches] working envelope
- 17 HP 20,000 rpm liquid cooled spindle
- Mastercam software
- Fully enclosed for composites / plastic machining with dust collection system
Image Alternative Text: cnc
Virtek Laser
• Projects 3D laser template onto molds
• Guide the fabrication of ply layup,
• Paint masking
• Final assembly or component location.
Image Alternative Text: picture of Virtek Laser
Environmentally Controlled Lay-up Rooms
- 1,330 Sqft room
- 825 Sqft room
- Temperature and Humidity monitored & controlled
Image Alternative Text: Picture of Environmentally controlled Lay-up Rooms
Hexagon Absolute Arm V2P, 8530, 7-Axis
- 7-Axis Probing Kit V2P
- CP-C Installed
- Magnetic Base with Mounting Ring
- Hexagon Stand, Model 231 Small
- Hexagon Laptop Support Arm And Tray
- Verisurf CAD MEASURE
- Verisurf USB Option
- Computer Opt-Out Fee
Image Alternative Text: picture of Hexagon Absolute Arm
Invar and Steel Layup tables/tooling
- 12x8 ft steel tool
- 10x10 ft invar tool
- 40x15 ft invar tool
Image Alternative Text: Picture of Invar and Steel Layup tables/tooling
SRD-Series Epoxy Processor
- Two part epoxy resin infusion machine
- 60 gallon capacity holding tanks
- designed for automated large scale resin infusions
Image Alternative Text: picture of SRD Machine
